Description
This item is Drop Shipped. Please contact the office to place an order: Supplies@presshtv.com or call us at 770-455-1020

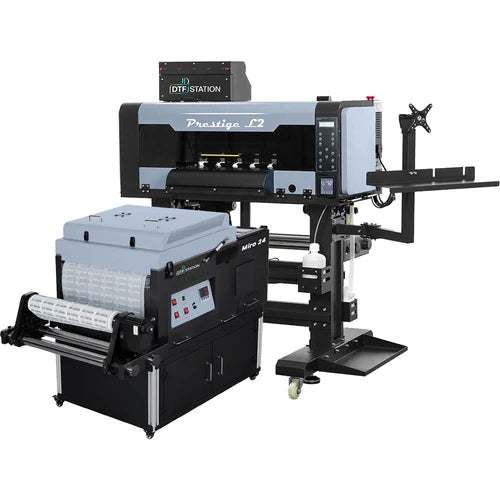

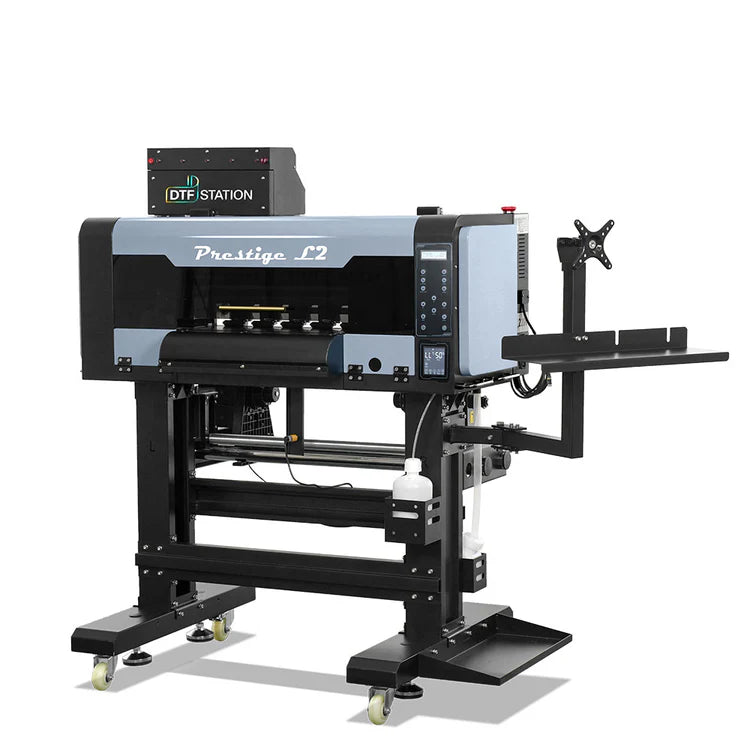

DTF Station Prestige L2 & DTF Shaker Bundle (shipping, professional install and supply package sold separately)
Bundle the Prestige L2 DTF Roll Printer with a Seismo DTF Powder Shaker, and save up to $6000!
Choose from one of the following options:

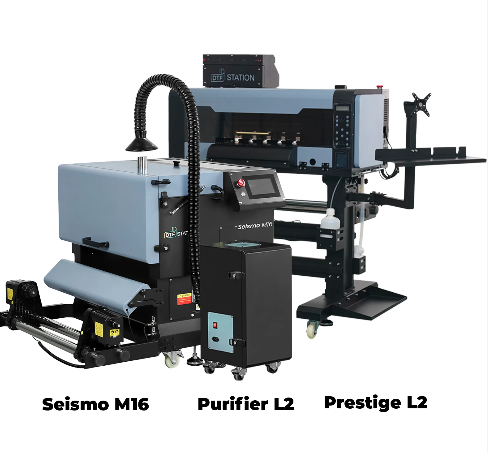

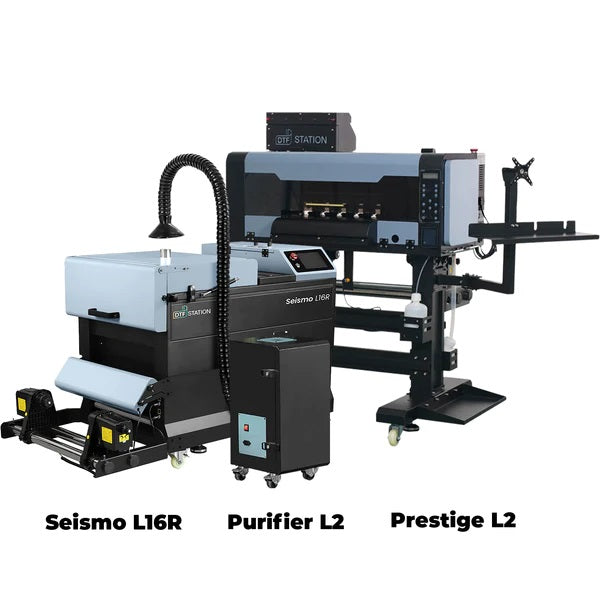

- Seismo L16 & Purifier L2: Prestige L2 DTF Printer, Seismo L16, and Purifier L2
- Seismo A16 (with built-in Air Purifier): Prestige L2 DTF Printer and Seismo A16 (with built-in Air Purifier)
- Lifetime Technical Support
- Digital Factory Rip Software
- Limited 1-year warranty on non-consumable parts and limited 6 month warranty on the Printhead up to 2 Printheads*
Requires On-Site Training:
- On-Site Setup/Training + Driving Distance includes:
- One Time Driving Distance within 2 hours (of Buena Park, CA, 90621)
- 4~6 Training Hours Onsite
- Lifetime Virtual Training
- On-Site Setup/Training + Air Travel Domestic includes:
- One Time Accommodations such as hotel, rental car, flight ticket
- 4~8 Training Hours Onsite
Features:
- Two i3200 print heads
- Head Strike Sensor: Prevents any head strikes
- Maximum Print Width: 16.5" roll media
- Fully automated system
- Variety of adjustable settings including:
- Belt Speed
- Powder Shaking Power
- Cooling
- Suction
- Head Strike Sensor inside shaker and take-up reel
- Pulls film as printer prints
Benefits:
- Speed & Efficiency: 40-60 shirts/hour (12"x12", 720x1800, 6Pass/High Resolution)
- 2 i3200 print heads make this printer one of the fastest performing DTF printers on the market
- Compact Size/Small Footprint: perfect for mid-sized businesses or businesses looking to upgrade from smaller pipelines
Specifications:
Print Head | Dual Epson I3200 Printheads (CMYK - WWW) |
Printing Accuracy | 1440/2160/2880dpi |
Printing Speed | 4Pass: 7.5㎡/hour |
6Pass: 5.5㎡/hour | |
8Pass: 4.5㎡/hour | |
Printing Assit | Front and rear arc plate heating; Platform suction; White ink circulation; Anti collision of nozzle; One-click auto cleaning; Integrated auto-lifting capping station; Built in computer and monitor combined bracket; |
Maximum Print Width | 16" |
Printing Media | PET Film |
Printing Interface | Gigabit network port |
Operating System | Windows 7, Windows 10 |
Printing Software |
Digital Factory V10 Direct to Film (DTF) Edition - DTF Edition (23" Wide or Smaller) |
Operation Environment | Temperature:15℃-30℃ (60 °F-86°F), Humidity:35%RH-65%RH |
Rated Voltage | 110V |
Rated Current | 14A |
Rated Power | 1500W |
Product Dimensions (LxWxH) | 30.75" x 58" x 56.25" |
Packaging Dimensions (LxWxH) | 40.4" x 70" x 58.25" |
Net Weight | 330.70 lbs |
Gross Weight | 396.83 lbs |
-----------------------------------------------------------
Seismo L16 Powder Machine
Current Lead Time: 8 Weeks
After you print your design, the Seismo L16 Powder Machine takes over by evenly spreading, then melting the exact amount of adhesive material directly onto your design. This saves you time, effort and cost - three resources you need to conserve to run a profitable business.
Features:
- Media width: 16"
- Fully automated system
- Variety of adjustable settings including:
- Belt Speed
- Powder Shaking Power
- Cooling
- Suction
- Head Strike Sensor inside shaker and take-up reel
- Pulls film as printer prints
Specifications:
- Voltage:220V/15A
- Power:3.2KW
- Power Consumption:2KW-3.2KW
- Net Weight:330 lbs
- Gross Weight:440 lbs
- Product Dimensions: 77.5" x 42" x 40"
Compatible With:
-----------------------------------------------------------
Seismo A16 DTF Powder Applicator and Dryer
Features:
- Advanced Built-in HEPA 2 Layer Air Filters: filter out any fumes from DTF powdering. These low maintenance, easy-to-replace filters keep your working environment clean and safe.
- Power Media Guide: keeps power from falling
- Advanced Take-Up System: Additional tension bar to roll up the finished DTF films better.
- Advanced Film Detector: With the built-in film sensor, the Seismo A24 automatically turns off and on the power station and heating elements.
Benefits:
- Low power requirement: 110V
- Built in purifier helps maintain a safe working environment for user and those around them
Specifications:
Power | 1.5KW |
Shaking Powder | Motor vibration, automatic powder return-free |
Heating Method | Back baking and front baking fast constant temperature heating |
Take-up and Feed Film | Constant tension automatic induction system |
Operation Mode | Manual Control / Auto control |
Mesh Belt | Drum suction operation mesh belt |
Automatic Deceleration of Film Cutting | Prevent deformation of heating film |
Method of Dusting | Constant Weight automatic sensing |
Feeding Size | 17.71" |
Configuration | With All-in-one smoke purifier |
Packing Weight | 369.27 lbs |
Packing Size | 59" x 33" x 33" |
Configuration | With All-in-one smoke purifier |
Voltage | 110V |
Warranty: 1 yr warranty on all parts excluding air filter/ purification system (regular maintenance required)
