Graphtec Pro 9000 Series Vinyl Cutter - Drop Ship
Graphtec Pro 9000 Series Vinyl Cutter - Drop Ship

Graphtec Pro 9000 Series Vinyl Cutter - Drop Ship

Model: 9000 Pro-75 30"
Price:
$4,495.00

Product Note:

Description

ISA Current Promo:

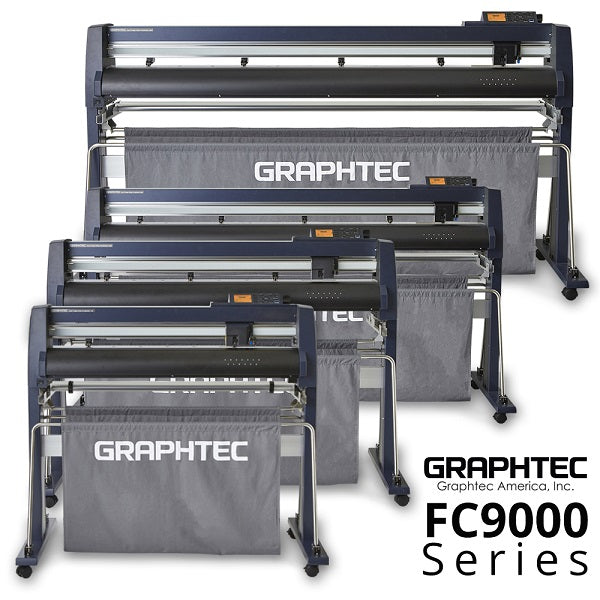

The new FC9000 series is available in 4 model sizes
The flagship FC9000 Series is Graphtec’s most advanced, versatile roll fed cutting plotter to date. Revered around the world for its dependable, high-precision cutting capabilities with both printed and unprinted materials, the FC Series is the ultimate finishing solution for the wide format signage, apparel, and automotive industries. A newly developed feeding system and cutting head has further improved cutting quality of thin and thick materials ranging from delicate window tint to rigid magnet and high intensity reflective. ARMS 8.0 features the introduction of Graphtec’s Datalink barcode generation system which efficiently loads and processes your jobs automatically.


DataLink Barcode:
Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button.
DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software.
The FC9000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.


Unrivaled Print/Cut Accuracy:
Graphtec’s Advanced Registration Mark Sensing technology delivers precise Print / Cut results in addition to efficiency boosting features.
The new white LED sensor and improved search algorithm accurately read registration marks printed from any printer onto a large variety of media types including high gloss, metallic, glitter, and high intensity reflective.


Heavy Duty Cutting:
No flatbed? no problem.
A re-engineered feeding system has greatly enhanced the cutting capabilities of thin and thick media types.
Add additional push rollers for increased precision when cutting heavy, rigid materials such as magnet, rubber, and diamond-grade high intensity reflective. Three pressure settings ensure strong media hold-down without leaving track marks.


Contour and Die Cut:
Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media


Take-Up Reel:
The optional take-up reel boosts production efficiency by automatically winding rolls of media up to 65 feet long with equipped infrared sensor.
Compatible with the FC9000-140 and FC9000-160.
The FC9000 has added features:
Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button. DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software. The FC9000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.
The new FC90000 series is available in four model sizes:
FC9000-75 30in, the FC9000-100 42in, the FC9000-130 54in, the FC9000-160 64in. Maximum compatible media widths for each model are 36", 48", 60", and 72" respectively.

New manufacturing technologies, along with the latest engineering advancements, have allowed Graphtec to make an unprecedented move forward in the industry. High performance features have been added to the new series yet its competitive pricing remains.

With the world's fastest throughput performance and superb accuracy, the new FC9000 series accommodates the most demanding cutting and plotting projects and provides users with the versatility needed for a wide variety of applications.

Price includes:

3-year warranty with Graphtec USA

Floor stands, media roll rack, media catch basket, Graphtec Studio, standalone software,
and also includes Cutting Master 3 plug-in software for Adobe Illustrator and CorelDraw*

Mac compatible with systems running OSX 10.4-10.8.

*Cutting Master 3 Compatibility with CorelDraw
CorelDraw Graphics Suite X6 (includes Visual Basic)
CorelDraw Premium Suite X6 (includes Visual Basic)

*Cannot use Cutting Master with CorelDraw Download (Home) version or Education version since they do not include Visual Basic. Users with these two versions have to contact Corel and upgrade to full versions.

Each unit includes standard media roll rack, floor stands and dual media catch basket for dust-free, continuous long length and/or repetitive job operations.
